When you connect dual or multiple monitors to your Dell computer, Windows automatically detects the monitor and displays your computer desktop screen. You can then choose how you want your desktop screen to appear and customize the display settings such as display style, screen resolution, color depth, and more in Windows 11 and Windows 10.

Are you trying one of the following multiple monitor setups? Find information to learn how to set up multiple monitors with your laptop or desktop computer.

Dual monitors, dual screen, or two monitor setup

Triple monitors or three monitor setup

Quad monitors or four monitor setup

NOTE: To learn how to setup a Dell monitor, see the documentation of the monitor for step-by-step instructions. For non-Dell monitors, see the documentation of the monitor available on the device manufacturers website.

Learn How to Connect a Monitor to a Dell Computer.

Here is A Guide to External Ports and Connectors on a Dell Computer.

Expand all | Collapse all

Most desktop computers have video ports to connect to at least two external monitors. Most laptops have at least one video port, and some laptops may have a second video port.

NOTE:

For optimum performance, it is recommended that you install the latest drivers on your computer.

NOTE: SupportAssist helps download the latest drivers for your Dell computer. To learn more, go to the SupportAssist page.

Ensure that your computer has the latest updates for Windows. Go to the Windows Update

Depending on your monitors and their features, you have two options, as outlined previously.

Back to top

After connecting the monitors, you can adjust the settings for each monitor.

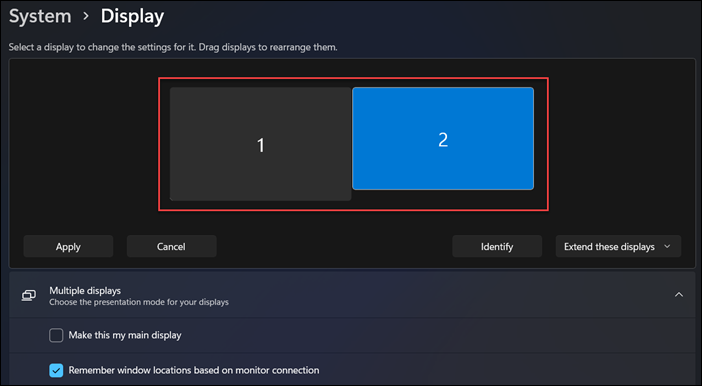

If you have multiple displays, you can rearrange them. This is useful if you want your displays to look the same as they do in your home or office. Select and drag the display to the wanted location in Display settings. When you are satisfied with the layout, click Apply. Move your mouse pointer across the different displays to ensure that your new layout works as expected.

You are shown this option when Windows detects more than one display. Each display is numbered to help you identify them more easily.

In a multiple display setup, one display or monitor must be set as the primary display. The primary display shows the taskbar and other main desktop components such as time, system tray icons, and more. To set the primary and secondary displays, follow these steps:

Press the shortcut keys Windows logo + R keys to launch the Run dialog box.

In the Run dialog box, type desk.cpl and press Enter.

In the Display settings panel, select the display you want to use as the primary display.

Under the Multiple Displays section, click to select the Make this my main display.

Click Keep changes when the pop-up dialog box appears.

After connecting your external monitors, you can change settings such as resolution, screen layout, and more.

To see the available settings in Windows 11 or Windows 10, go to the Settings app, select System, and then choose Display.

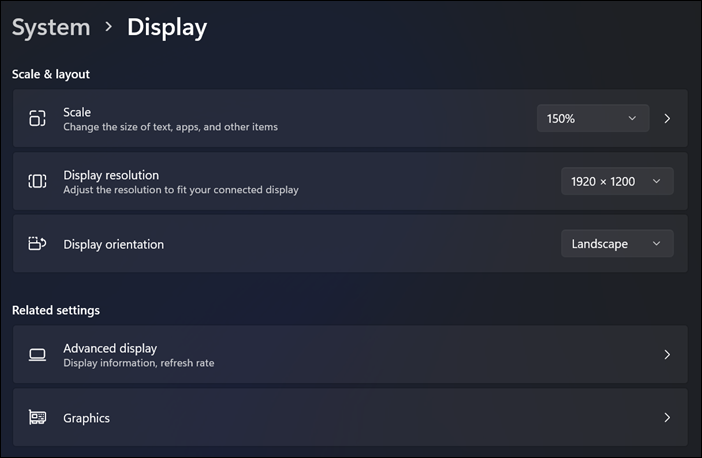

Windows recommends an orientation for your screen. To change it in Windows 11 or Windows 10, in the Display settings, under Scale & layout, select your preferred Display orientation.

NOTE: If you change the orientation of a monitor, you must physically rotate the screen. For example, you would rotate your external display to use it in portrait instead of landscape.

Once the cables are connected securely, your computer should automatically detect and display the desktop screen on the connected monitors. You can now select the display style that best suits your needs. Windows provides multiple display style options on how the desktop screen is displayed across multiple monitors that are connected to your computer.

NOTE: To change what shows on your displays, press Windows logo key + P. Here is what you can choose.

NOTE: When you connect an external monitor to a Dell laptop, the default display style is set to Duplicate. When you connect a second or third monitor to a Dell desktop, the default display style is set to Extend.

Need help with changing the screen resolution, adjust the refresh rate, and change the size of fonts and icons?

Back to top

A docking station or port replicator provides a simplified way of connecting multiple devices like keyboard, mouse, printer, external hard drives and one or more external monitors to a laptop personal computer which usually have limited connectivity ports.

Most docking stations or port replicators have video ports to connect two or more monitors, and this is similar to connecting your computer to your monitor. You must have the correct video cables. A docking station or port replicator when connected to a laptop allows you to switch off the laptop LCD and use the external monitors instead.

NOTE:

For optimum performance, it is recommended that you install the latest drivers on your computer.

NOTE: SupportAssist helps download the latest drivers for your Dell computer. To learn more, go to the SupportAssist page.

Ensure that your computer has the latest updates for Windows. Go to the Windows Update

Depending on your monitors and their features, you have two options, as outlined previously.

Back to top

Dell wireless monitors enable your Windows laptop, Android smartphone, or tablet with Miracast capability to display the screen image to the monitor using a Wi-Fi Direct interface. When you connect the laptop, smartphone, or tablet to the Dell wireless monitor, you can access the mouse and keyboard that are connected to the Monitor and control the devices.

You can either extend or duplicate your Windows desktop wirelessly to one of these monitors and connect your Android 5.0 (and above) tablet or smartphone over Wi-Fi simultaneously through Dual Cast.

See our Guide to Dell Wireless Monitors.

Back to top

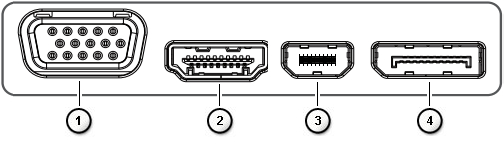

The latest TVs and computers provide a wide variety of video connectivity options. Ensure that the video port on your computer matches an available video port on your TV, like VGA, DVI or HDMI.

Connecting your Dell computer with a TV

Connect the TV to the computer using a compatible cable.

Power on the TV.

Change the video input source on the TV to match the video source connection from the personal computer (HDMI, VGA (may also be mentioned as personal computer), DVI so forth)

Power on the computer.

If you encounter a problem when trying to connect your computer with a TV:

Power on the TV before turning on the computer.

Ensure that the correct video input source is selected on the TV.

Coaxial or S-video cable connections do not support higher resolution, ensure to set the resolution to 800 x 600 or less.

Certain TVs may require you to adjust the screen aspect ratio for the best possible scaling and resolution.

Certain TVs may require you to set the TV as the primary display. Change the video settings in Windows and restart the computer.

Back to top

Windows 11 and Windows 10 support dual or multiple monitor setups. If you encounter problems with your multiple monitor setup, such as a blank or black screen, no signal to monitor, resolution issues, learn How to Troubleshoot Multiple Monitor Problems on a Dell Computer.

Back to top

If your Dell computer has encountered a display or video problem with multiple monitors after upgrading to Windows 11 or Windows 10:

Uninstall the video driver.

Update the BIOS of the computer.

Download and install the latest video or graphics driver.

Reboot the computer.

NOTE:

Back to top
